TEBCO

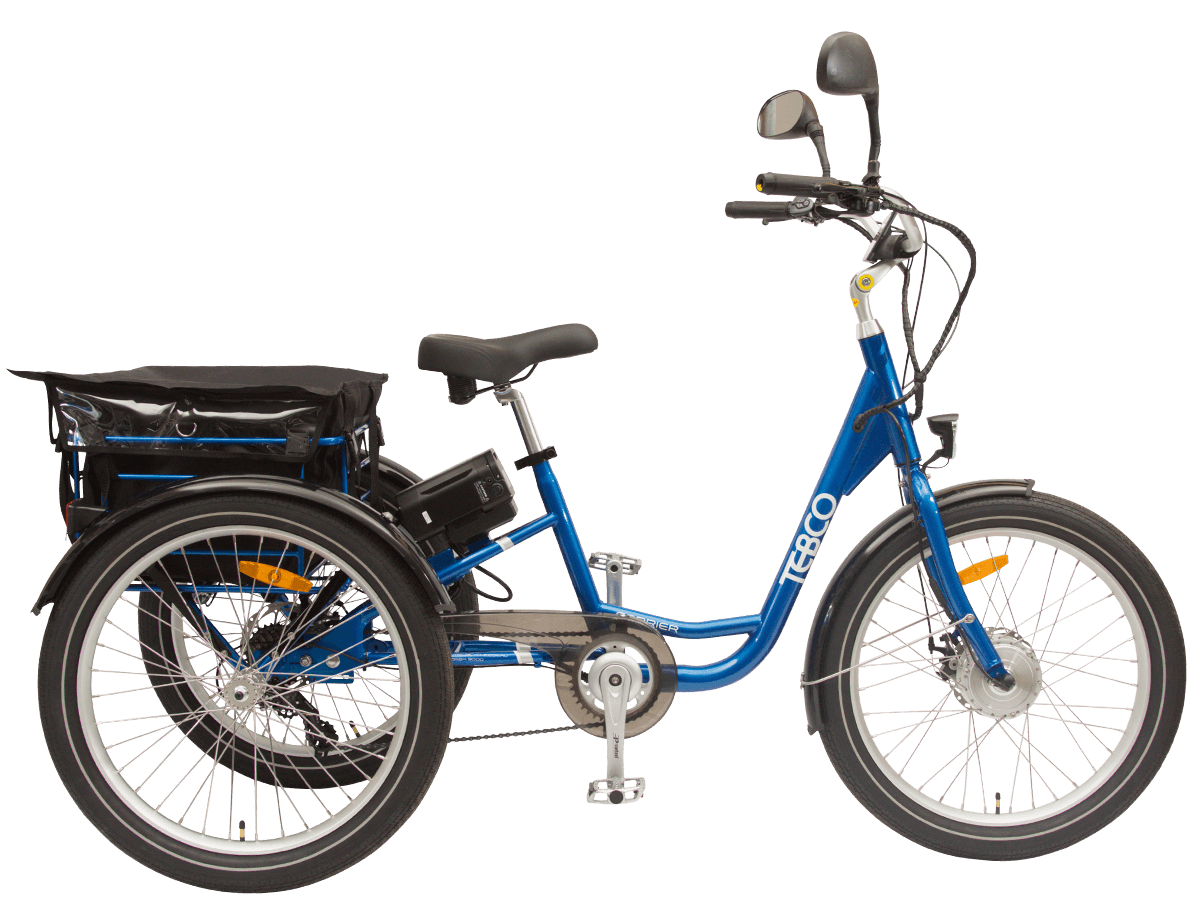

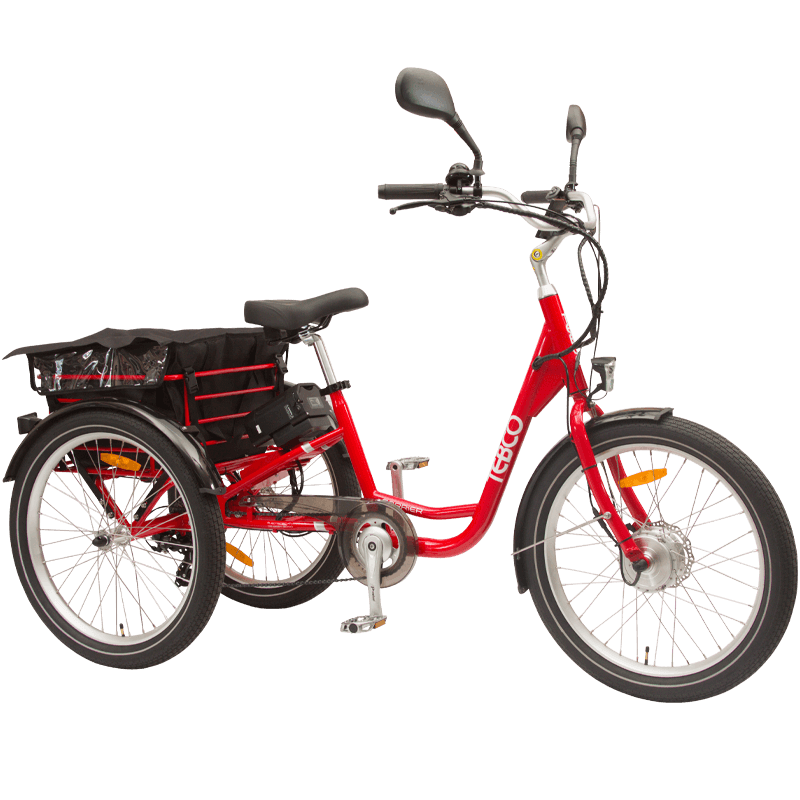

TEBCO Carrier Tricycle

TEBCO Carrier Tricycle

$3,099.00
$3,099.00
Sale Call for Availability
Price includes assembly & tuition

Max. Carry Capacity – 180kg including rider & payload

24in front and rear wheels

Max. speed 25kmh / Max. range 60km

250W motor / 9 Level Pedal Activation

36V 13.2Ah Samsung Lithium Battery

Colour Indicator / Trip Computer / Speedo / Battery Gauge

7 speed Shimano trigger shift gears

Disc Brake Front and Rear

High quality 2.1in Kenda K1047 tyres

Rear cargo basket

No Licence or Registration Required



Mechanical
Frame 24” Steel MG
Wheel Size 24in 36H Front and Rear
Fork Daywin Rigid Steel Fork
Handlebar PROMAX HB-3202
Stem PROMAX MQ-525
Seatpost PROMAX SP-222 & 28.6 x 350mm
Seat Clamp Alloy Quick Release 31.8mm
Saddle MINGCHENG DY300
Shifters SHIMANO SLM3157RC
Derailleur SHIMANOARDTY300D
Rims PARWEIER 25DE 24Inch 36H Double Wall Alloy
Hubs NUOD Aluminium
Hubs MODUS Aluminium
Spokes 13g 2.2mm F / 13g 2.2mm R Stainless Steel
Tyres KENDA K927 24in x 2.125in
Cranks PROMAX PRO-A38(92) 170MM 38T
Pedals FEIMIN FP-965A
Chain KMC Z7 GY/RB/130L
Brakes Front TEKTRO Aries Mechanical Disc
Brakes Rear TEKTRO Aries Mechanical Disc
Brake Levers WUXING 108PPD/4 Locking With Power Cut Off
Mudguards Black Plastic 24in x 65mm

Electrical
Motor 36V 250W Front Wheel Drive Motor
Controller 15Ah LISHUI Brushless LSW1155-59M
Battery 36V 13.2Ah Samsung Lithium Battery
Battery Life Up to 800 recharges from flat
Battery Weight 2.4kg
Display Panel KEY DISPLAY KD718X
Twist Grip Acc Assy Wuxing 158X.T / HT406 Slimline
Pedal Activation Bigstone 12 Magnet Left Crank Mount
Light Front BUCHEL Uni LED Static Illumination
Light Rear BUCHEL Edge LED Static Illumination
Charger Sans 36V 2Amp Lithium AU Compliant
Main Cable JULET 1T5 Waterproof Quick Release
Audible Warning HONKA HOOTA Black Synthetic Dome
Max Speed 25kmh
Max Range 60km 1:1 Pedal Assist
Tricycle Weight 36kg incl battery

Sizing
Step Over 380mm
Max Seat Height 1030mm
Min Seat Height 780mm
Length 1820mm
